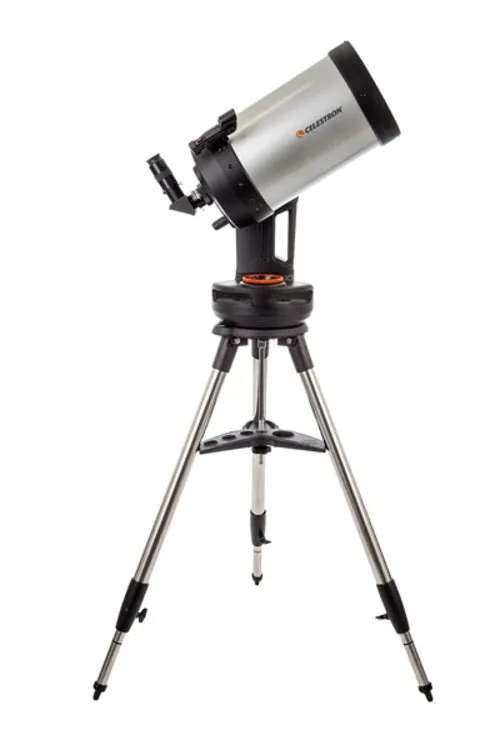

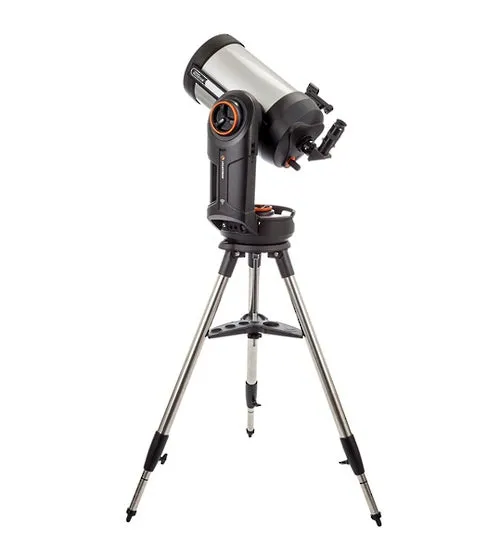

Celestron Nexstar Evolution 8" 203mm Schmidt Cassegrain
Celestron Nexstar Evolution 8" 203mm Schmidt Cassegrain
  • DefaultTitle

$ 74.24

$ 57.11

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Exceptional optics and power, versatile and user friendly with integrated WIFI and 10 hours re-chargeable battery life.

Explore the Universe and control your NexStar Evolution telescope with the free Celestron SkyPortal app for iOS and Android!

  • Compact, portable 8-inch Schmidt-Cassegrain optical tube with StarBright XLT optical coatings and Fastar compatibility
  • Computerized GoTo mount with high-performance brass worm gears and motors for improved tracking accuracy, along with reduced gear backlash
  • Rechargeable lithium-iron battery with enough power for 10 hours of continuous observing
  • Improved industrial design with manual clutches and integrated carry handles, plus the added convenience of two accessory trays and a USB charge port for your smart device
    Description

    "This robotic WiFi telescope is the coolest app-cessory in the galaxy" - Wired.com

    "5-star overall rating" -BBC Sky at Night Magazine

    The NexStar Evolution is the first Schmidt-Cassegrain telescope with integrated WiFi. Leave your hand control behind and slew to all the best celestial objects with a tap of your smartphone or tablet. Connect your device to NexStar Evolution’s built-in wireless network, and explore the universe with the Celestron mobile app for iOS and Android.

    Use the planetarium interface to view the night sky in real time or display a list of celestial objects currently visible based on your time and location. Our proprietary SkyAlign alignment procedure is built right into the Celestron mobile app, so you’re ready to observe within minutes.

    The most user-friendly telescope ever
    Celestron engineers designed NexStar Evolution based on years of customer feedback. It offers many thoughtful design features that combine to provide you the best possible experience out under the stars.

    Forget about batteries or an external power supply. For the first time ever on a consumer telescope, NexStar Evolution includes its own built-in battery. With this ultra-long life lithium-iron phosphate battery, you’ll be able to enjoy stargazing marathons up to 10 hours on a single charge. You can even use NexStar Evolution’s USB charge port to top off the other devices in your life that need to stay powered on during an observing session. An intelligent power management system senses when battery levels are low and goes into power-saving mode to keep your telescope running for as long as possible.

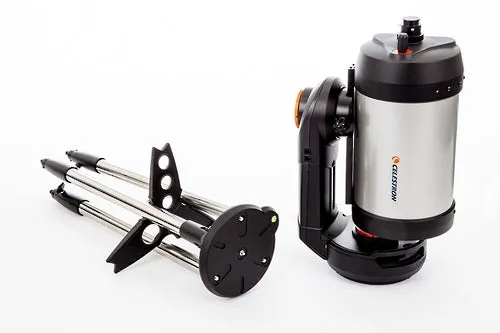

    Setting up your NexStar Evolution is quick and painless with large, ergonomic handles. The all-metal tripod features a metal accessory tray with indentations for storing and carrying the tripod. During setup, leg etchings help you achieve a level, uniform height for your telescope. Manual clutches in both altitude and azimuth offer greater flexibility to manually point the telescope when powered off. Store up to 7 eyepieces in 2 accessory trays, one with an adjustable red LED illuminator.

    Superior tracking fit for astroimaging
    If you’re interested in astroimaging, the 8-inch NexStar Evolution is an excellent, affordable way to get started. It’s the only fork-mounted telescope in its price range that offers brass worm gears, along with improved motors. NexStar Evolution’s tracking accuracy is so impressive, you can capture images of deep-sky objects like the Orion Nebula by simply attaching your DSLR camera. As you progress in the hobby of astroimaging, you can add our HD Pro Wedge to achieve longer exposures for more detailed astrophotos. NexStar Evolution compatible with the wedge when used with the CPC tripod (sold separately).

    Of course, the Schmidt-Cassegrain optical system offers bright, sharp views with StarBright XLT optical coatings—a great choice for visual observers and budding astroimagers alike.

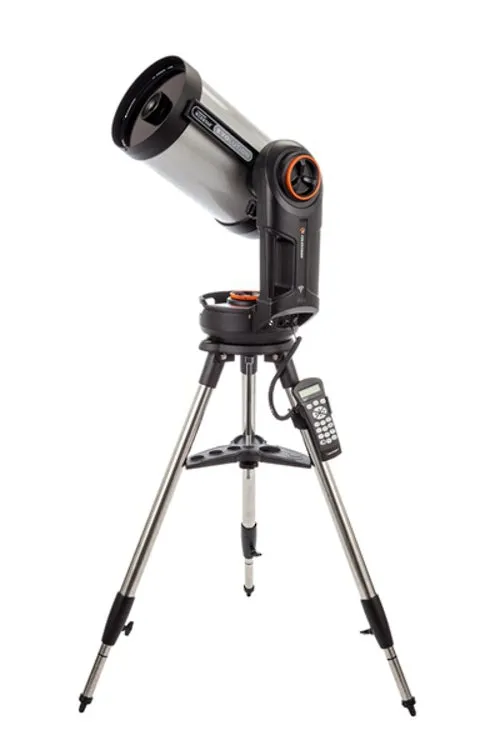

    NexStar Evolution is equipped with 4 auxiliary ports--2 on top of the fork and 2 on the bottom. A classic NexStar hand control is included, but is not necessary when using NexStar Evolution with the mobile app. The telescope also includes a StarPointer finderscope, two 1.25” Plossl eyepieces, a 1.25” star diagonal, and an AC adapter.

    Recommended Usage – Astronomy

    *2 Year factory warranty covered by Celestron*

    Includes These Celestron Technologies




    Compatible with




     Specifications

    OPTICAL TUBE INFO:



    Optical Design

    Schmidt-Cassegrain

    Aperture

    203.2mm (8")

    Focal Length

    2032mm (80")

    Focal Ratio

    f/10

    Focal Length of Eyepiece 1

    40mm (1.57")

    Magnification of Eyepiece 1

    51x

    Focal Length of Eyepiece 2

    13mm (.51")

    Magnification of Eyepiece 2

    156x

    Finderscope

    Red Dot Finderscope

    Star Diagonal

    1.25" Star Diagonal

    Optical Tube

    Aluminum

    Highest Useful Magnification

    480x

    Lowest Useful Magnification

    29x

    Limiting Stellar Magnitude

    14

    Resolution (Rayleigh)

    0.69 arc seconds

    Resolution (Dawes)

    0.57 arc seconds

    Light Gathering Power (Compared to human eye)

    843x

    Secondary Mirror Obstruction

    64mm (2.5")

    Secondary Mirror Obstruction by Diameter

    31%

    Secondary Mirror Obstruction by Area

    9.77%

    Optical Coatings

    StarBright XLT

    Optical Tube Length

    432mm (17")

    Optical Tube Diameter

    238mm (9.37")

    Optical Tube Weight

    12.5 lbs (5.9 kg)

    Dovetail

    Vixen/CG-5 Dovetail bar

    MOUNT INFO:



    Mount Type

    Computerized Altitude-Azimuth Single Fork Arm

    Instrument load capacity

    25 lbs (11 kg)

    Height adjustment range (includes mount and tripod)

    1193.8mm - 1752.6mm (47" – 69")

    Tripod Leg Diameter

    31.75mm (1.25") Stainless Steel

    Mount Head Weight

    16 lbs (18.14 kg)

    Accessory Tray

    Yes

    Tripod Weight

    22 lbs (10 kg)

    Slew Speeds

    9 slew speeds - max speed 4°/second

    Tracking Rates

    Sidereal, Solar and Lunar

    Tracking Modes

    Alt-Az, EQ North and EQ South

    GPS

    N/A

    Dovetail Compatibility

    Vixen/CG-5 saddle plate

    Number of Auxiliary ports

    4 Aux ports (Hand Control can use any of the Aux ports)

    Autoguide port

    No

    USB Port

    Yes, Hand Control input and Mount output

    Power Requirements

    Internal 9 6V, 4 5Ah lithium iron phosphate battery (LiFePO4)

    Motor Drive

    DC servo motors

    Alignment Procedures

    SkyAlign, 1-Star Align, 2-Star Align, Auto 2-Star Align, Solar System Align, Quick-Align, Last Alignment, EQ North / EQ South Alignment (EQ align requires an equatorial wedge)

    Periodic Error Correction

    No

    Computerized Hand Control

    2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 port for PC connection

    NexStar Database

    Over 120,000 including 220 of the best deep sky and solar system objects

    Software

    Celestron's Starry Night Special Edition Software, SkyPortal App

    Total Kit Weight

    51 lbs (23.13 kg)

    Included Items

    NexStar Evolution OTA | Single Fork Arm Mount & Tripod | Accessory Tray| Built-in Wifi | Integrated Lithium-iron battery | NexStar Hand Control | 40mm & 13mm eyepiece | Red dot finderscope | Visual Back | Star Diagonal | 4 plug AC adapter
